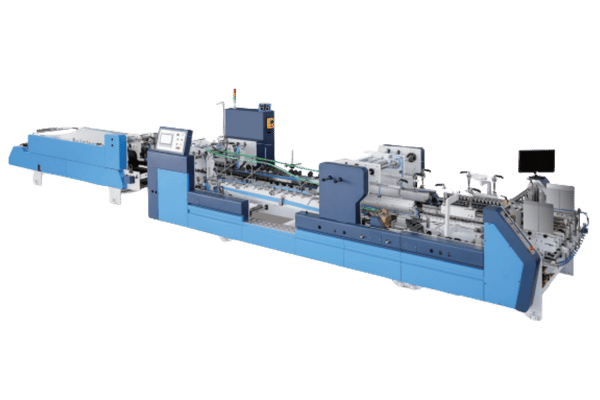

Automatic Packaging Line
Automatic Packaging Line for Folding Carton Manufacturers — Print → Die-Cut → Fold-Glue → Pack
Automatic Packaging Line in carton converting is an integrated line of stations converting a flat printed sheet to a folded, glued and stacked carton in a single, continuous flow line. Cenwan fabricates three types of integrated line configuration with four types of stand-alone folder gluers of express logistics, pharma, food, cosmetic and 3C electronics carton plants serving in more than 40 countries since 2014.
3 Integrated Lines: Dual-Channel · Print+Die-Cut+Fold+Glue+Pack · Express Carton
4 Standalone: High-Speed · Stereo Box · Box Folding & Gluing · Corrugated
Speed Range: 150–400 m/min, depending on configuration
Price Tier: USD $40K (basic) to $500K+ (full integrated line)
400 m/min
Max Line Speed
40+
Countries Served
1.3M /day
Peak Cartons (Size 13#)
3-5 mo
Standard Lead Time
The Capacity & Changeover Bottleneck Behind Folding Carton Production
Auto carton converting stations serving e-commerce, pharma, food and cosmetic carton packaging had reached the same throughput ceiling during every peak season. Single-lane or index-fixated folder gluers max out at roughly 600,000 boxes per day of standard express size 13#, plus stand-alone operator-translating (printer + die-cutter + folder gluer + packer) ~30-40% of published rate and schedule efficiency.
The causality is architectural, not from vendors, as standard packaging industry archaeology from paperindex.com and impack.ca settles on four bottlenecks modes that bottleneck stand-alone lines: gluing slipstreams from inconsistent application, box distortion from feeder mismatch between separated modules, assembly registration variation from alteration in packing-density, and inter-module shutdowns at every level of transfer. All of these failure techniques compound during peak seasons when volume traverses 300% to 400% of the baseline.
Where the 30–40% Throughput Gap Comes From
Operator head-time
manually pulling corrugated boards from an upstream auto carton folder gluer to a downstream auto carton glue machine imposes an overhead of around 8-15% on stand-alone lines
Module-time correction
each module has an individual speed index, with the line speed capped at the slowest station as well as normative reconciliation
Change-over time
how long it takes to switch from size 13# to 7# in a stand-alone or standalone, operator-operated setup takes 15-45 mins; in one-touch servo lines, that same switch takes less than 60sec
In-process buffer cost
paperboard (or corrugated) accounts for 70-85% of total carton delivered price, so every buffer rejections or misfeed takes a bite out of a company’s margin
Blank style protection gaps
selling auto-bottom, crashlock and triple or double-wall cartoning styles on a non-servo carton folder gluer entails a new tooling and set-up expense on every new size ordered, multiplying the outlay on every mixed portfolio order
Integrating printing, die-cutting, folding and gluing, and packing in an auto-modular carton converting system at an architectural level erases its limitations: one case monitoring workstation manages inter-module operation sequencing, works-in-process buffers vanish, and head-count drops from four to just one or two people. It also provides an answer to the inquisition of whether to buy an automatic folder gluer machine alone or stepping up to a carton packaging line – the integrated path wins daily once throughput exceeds 800,000 boxes and box-type blend surpasses two styles.
Sources of industrial information from Mordor Intelligence show cross-border e-commerce logistics accelerating between 2015 and 2025 from $28.28 billion to $33.15 billion in 2026, and China’s State Post Bureau reporting 216.5 billion parcels sent in 2015, up 11.5% from 2014 – the line that wins today is the configuration that erases inter-stage bottlenecks before they cap throughput, which is the architectural difference between a stand-alone auto folder gluer and an integrated carton packing system.
Cenwan Production Line Catalog — 3 Integrated Lines + 4 Standalone Folder Gluers
Cenwan justifies its automation portfolio selection on converter scale by purchasing efficiency. Below 800K boxes per day, plants either purchase a stand-alone automatic folder gluer machine, or a folding gluing machine for a specific box style. From 800,000 to 2 million boxes per day, plants buy a single-channel integrated line, and above 2 million boxes per day, they purchase the dual-channel flagship. That handful of stand-alone machines, folding-gluers and integrated lines to buy, below 800K boxes per day, cover the entire spectrum of carton manufacturing styles from simple FEFCO 0201 regular-slotted cartons with their narrower semi-closed blanks, to multi-format flexo printed cartons.
Three Integrated Production Lines
FLAGSHIP · DUAL-CHANNEL

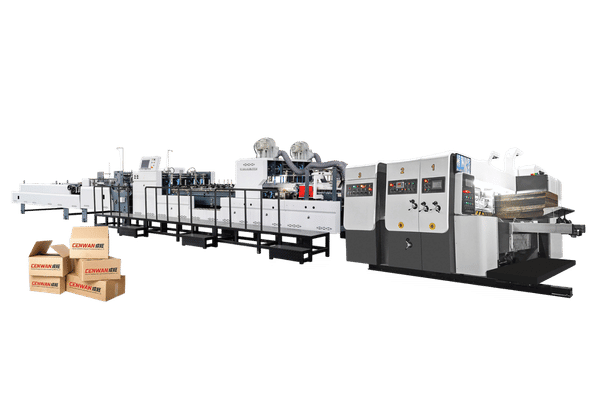

Dual-Channel Folder Gluer Line
- Speed 240 m/min combined
- Capacity 1.3M boxes/day @ size 13#
- Footprint 17.5×4×1.8 m (~70 m²)
- Range Postal 13#–7# express cartons
- Use case peak volumetric absorption for E-commerce (618, Singles’ Day, Black Friday)
FULL INLINE · CW-IL

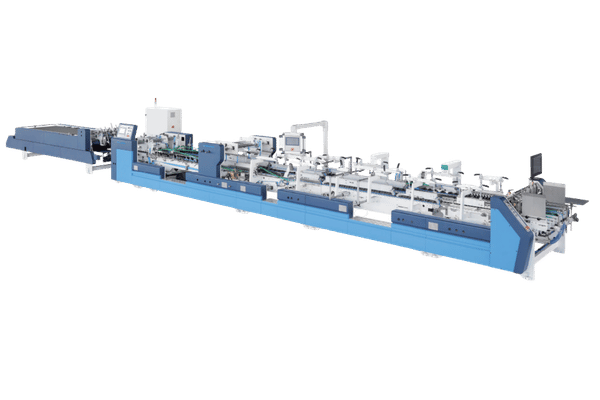

Printing + Die-Cutting + Folder Gluing + Packing Line
- Config. Single (CW-IL-Single) or Dual (CW-IL-Dual)
- Speed 200 m/min (Single) or 240 m/min (Dual)
- Range 290–1250 mm (Single); 13#–7# postal (Dual)
- FEFCO 0110, 0114, 0200, 0201, 0203, 0206 series
- Use case Plants needing inline print-to-pack workflow
EXPRESS · POSTAL

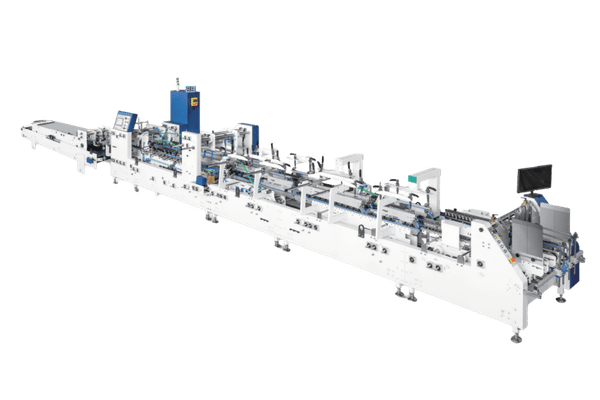

Express Carton Production Line
- Speed 240 m/min dual-channel
- Capacity 1.3M @ 13#, 800K @ 7# / day
- Range No.7–13 China postal standard
- Heavy-duty Up to AAA 7-ply corrugated
- Use case Hub-level postal & e-commerce parcel converter
Four Standalone Folder Gluer Machines
High-Speed Folder Gluer (CW-G Series)
650 / 880 / 1100 mm widths · 400 m/min line speed · paperboard 200–800 g · for high-volume folding-carton plants needing speed without integrated front-end die-cutting.
High-speed folder gluer specs →

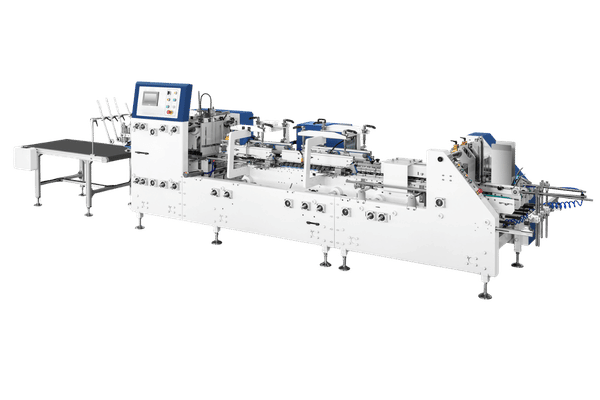

Stereo Box Folder Gluer (CW-T-650)
150 m/min · 200–400 g paperboard · dedicated to specialized cosmetic and high-profile retail stereo boxes.
See the stereo-box configuration →

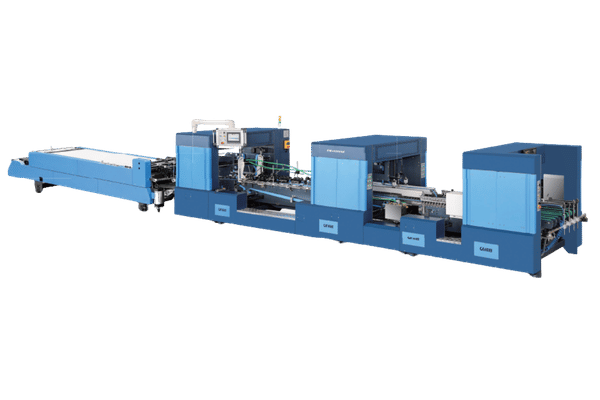

Box Folding & Gluing Machine (CW-W Series)
1250 / 1450 / 1650 mm · 180–200 m/min · full-servo line with one-click size changeover for straight-line, lock-bottom, and 4/6-corner box styles.
Open the CW-W series page →

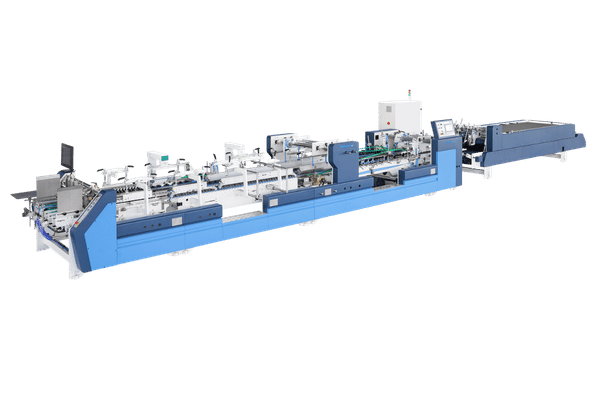

Corrugated Box Gluing Machine
Designed for E / F / C / B / AB flute corrugated medium · for plants producing a mix of both folding-carton and corrugated package formats on the same production floor.
Explore corrugated configurations →Automatic Packaging Line Factory Gallery
×
Buyer Decision Matrix — Routing to the Right Line or Machine
The Cenwan automation choice is driven by six buyer priority factors identified following tasks-based distributor research, spanning from line equivalent throughput to after-sales coverage, changeover time, box-style multiplexing, compatibility with FEFCO standards, and preferring integrated lines to stand-alone units. The following table plots the major convertermotivations groups, onto this simple Cenwan portfolio diagram below.
Buyer Profile
Daily Volume Target
Box Style Mix
Recommended Cenwan Solution
Regional carton converter, single line, mid-volume
< 600K boxes/day
1–2 box styles, mostly straight-line
Box Folding & Gluing Machine (CW-W) standalone
High-volume folding carton plant, no inline print needed
600K–1.5M boxes/day
Mixed lock-bottom + 4/6-corner
High-Speed Folder Gluer (CW-G) standalone @ 400 m/min
Pharma / cosmetic / premium retail stereo-box converter
200K–500K boxes/day
Stereo box, premium gift packaging
Stereo Box Folder Gluer (CW-T-650) standalone
E-commerce / postal converter with peak-season multipliers
800K–2M+ boxes/day
Postal 13#–7#, single box family
Dual-Channel Folder Gluer Line
Plant needing inline print-to-pack with mixed pharma / food / 3C orders
1M–3M+ boxes/day
Full FEFCO 0110–0206 range
Print + Die-Cut + Fold + Glue + Pack Line
Hub-level postal logistics / e-commerce parcel supplier
2M+ boxes/day, peak-season heavy
Postal 7#–13# at scale
Express Carton Production Line
Capacity Optimization Insight
Integrated Line vs Standalone Folder Gluer — When Each Wins
The one strategic choice the single decision converters wrestle with most is "another stand-alone folder gluer now or a totally integrated line later?" Only throughput doesn't help determine the answer. Floor space, operator headcount, vendor management, and peak-season flexibility weigh just as heavy in the five-year cost evaluation.
Standalone Folder Gluer
- Daily volume stays under 800,000 boxes
- Box-style portfolio is narrow and stable
- Already has in operation an upstream die-cutter and packer
- Capital budget tops out at USD $40–140K
- Workshop floor space is constrained (~30 m² available)
- Mixed product runs need per-machine isolation for quality control
Best fit:- regional packaging converters, sub-contract folding carton plants, mid-volume single-product plants.
Integrated Line
- Daily volume exceeds 800,000 boxes with peak multipliers
- Plant needs print-to-pack continuous flow in one cell
- Operator labor cost is a bottleneck (1-2 vs 4-6 per shift)
- Capital budget supports USD $80K–$500K+
- Workshop has ~70 m²+ contiguous floor space
- Open book: Time-to-sell-multiplier for a peak-season (618, Singles' day, black friday)
Best fit e.g. for e-commerce hub converters, postal logistics suppliers, multi-vertical plants with inline print + cut + fold + glue + pack.
The Hidden Integration Tax on Best-of-Breed Setups
Integrating best-of-breed equipment from multiple vendors has an opportunity cost that is generally not included in the initial quote—interface engineering, multi-PLC synchronization, and vendor management during commissioning often adds on four to eight weeks of labor, to produce a line that still achieves only 60-70% of published throughput because of operator transfers and cross-station jams.
Cenwan combined lines are shipped pre-tested as a system testable cell; commissioning is only around 1 week down from 4 to 8, number of vendors is only one instead of three to four, and line speed listed in production is according to published rate.
"
After consulting with team members, we determined three years ago that the converging relay stage was the most disparate element of our end-to-end transfer. Over the time that followed, we have delivered every postal-box rollout with this dual-channel relay, which operators say is the only configuration to suppress the jam type responsible for 30% of unplanned line stoppages on conventional executions.
Why Cenwan — Engineering Foundation, R&D, 40-Country Deployment
Cenwan is based out of the Zhejiang Zhongte Technology factory complex in Ruian, near Wenzhou. The other products manufactured on this same site constitute the upstream elements that go into Cenwan equipment. This enables the engineering team to have tighter tolerances than can be achieved for parts procured independently and enables buyers a more transparent view into manufacturing performance during factory acceptance testing (FAT) before shipment.
Engineering Depth and Manufacturing Control
10 plus years of folder-gluer engineering/hands-on processing, with the central team constantly developing the converging relay patent for dual channels
Component level traceability- each quotation (referring to specific machine) includes a brand sheet; for each material (imported PLC, servo drives, bearings, pneumatics valves, electrical contactors etc.) the manufacturer and the part number is listed
Temperature-differential bearing assembly - the use of all transmission bearings with a shrink-fit results in longer service life over 20 hour per day run cycles typical of express carton plants
Modular construction — every station is a self-contained unit with its own electrical separation and pneumatic interlocks, so a single station can be serviced or replaced without touching the rest of the line
Active Deployments Across Four Continents
Venezuela
Postmail-carton converter — South American e-commerce delivery
Pakistan
South Asian carton manufacturer with on-site Cenwan commissioning
Russia
Folder gluer line deployment with engineer dispatch
U.K. (Pal-Pak)
Corrugated converter using Cenwan equipment
Investment Tier Framework — Where Each Line Sits in the $40K–$500K+ Range
Most folder-gluer vendors hold pricing back until the buyer fills out a contact form. Cenwan publishes a working tier framework upfront because plant engineers need a budget envelope to advance an internal CAPEX proposal beyond the vendor-shortlist stage. The four tiers below cover the full Cenwan portfolio; each linked product page carries a more specific quote band tied to that configuration.
1
Basic
$40K – $80K
Standalone CW-W base folder gluer — straight-line, lock-bottom, single-product mid-volume plant.
2
Mid
$80K – $140K
CW-IL-Single integrated line or high-speed CW-G standalone — single-channel inline or 400 m/min standalone.
3
High-End
$140K – $280K
CW-IL-Dual flagship line — dual-channel converging relay, postal 13#–7#, 1.3M boxes/day capacity.
4
Full Integrated
$300K – $600K+
2-color flexo + die-cut + dual-channel + semi-auto strap--multi-line OEM rollouts and group customers.
Cross-Line Procurement Snapshot — Lead Time, Certifications, 40-Country Service
Procurement details vary slightly by line, but four numbers apply to all Cenwan publications and determine whether a converter can proceed with the project on time.
Procurement Factor
Standalone Machines
Integrated Lines
Notes
FactorProduction lead time
Standalone Machines30–45 business days
Integrated Lines45–60 business days
NotesQ4 peak-season rush available with confirmed deposit
FactorSea freight
Standalone Machines21–45 days
Integrated Lines21–45 days
NotesAir freight 10–18 days for critical-clock orders (premium applies)
FactorOn-site installation
Standalone Machines3–5 days
Integrated Lines5–7 days
NotesCenwan engineer dispatched; buyer covers visa, airfare, lodging, and $150/day rate
FactorWarranty
Standalone Machines12 months free
Integrated Lines12 months free
NotesImported electrical components and belts covered
FactorSpare parts
Standalone MachinesLifetime supply
Integrated LinesLifetime supply
Notes40+ country depot network; first 6 months consumables (fiber comb, slitting knife) ship free
FactorRemote support
Standalone MachinesLifetime included
Integrated LinesLifetime included
NotesWhatsApp / video diagnostics in English or Mandarin, 24h emergency response
FactorPayment terms
Standalone Machines30% T/T deposit + 70% before shipment
Integrated Lines30% T/T deposit + 70% before shipment
NotesL/C and credit-card options available
Certifications Held Across The Portfolio
CE Marking
ISO 9001:2015
EN ISO 12100:2010
EN 415-1:2014
RoHS 2011/65/EU
EC Declaration of Conformity
SGS Pre-Shipment Inspection (on request)
Automatic Packaging Line Tools
Select a tool below to calculate budgets, compare architectures, and configure your ideal machinery setup.
Line Recommender
Find the ideal machinery setup tailored to your product and capacity needs.
Launch ToolIntegrated Vs Standalone
Compare fully integrated systems versus standalone machines for your workflow.
Launch ToolTier Budget Mapper
Accurately estimate your packaging line investment across different automation tiers.
Launch ToolFrequently Asked Questions — Cross-Line Procurement & Decision
How do I choose between an integrated automatic packaging line and standalone folder gluer machines?
The walk boundary is usually assembled at about 800, 000 boxes/day, using its capital efficiency. For less, the stand-alone folder gluer will suffice; for more, the line-returning group of shallower capital payback-operator head count (1-2/8-60/shift) WIP buffer elimination, and the 30-40% throughput redemption against manual transfers and jams are realized.
What's the difference between Cenwan's three integrated line configurations?
The Dual-Channel Folder Gluer Line'is the postal-facing expert (13#-7#, 1.3 M/day for 13#); the Print+Die-cut+Fold+Glue+Pack is the whole inline process for plants that want flexo implemented simultaneously in the same cell; the Express Carton Manufacturing Lineis the scaled-up version of the dual-channel design for hub-level postal logistics providers. Each linked page has a full spec sheet.
What's the typical price range for a Chinese-OEM full integrated line vs European Tier 1 (BOBST/Heidelberg)?
European Tier 1 folder-gluers have published feeds up to 450 m/min. andare in the USD $400 K-$1.2 M scope, used to postpress folder-gluer work; Cenwan integrated lines operate at 200-240 m/min. in the USD $80 K-$500 K+ scope across the four tier levels, equivalently to then fulfilled FEFCO range. Use the BOBST EXPERTFOLD PDF (2021) and the Cenwan tier principles diagram presented above to understand price-per-throughput-meter as an outside-in item.
What box styles do Cenwan lines support — straight-line, lock-bottom, 4-corner, 6-corner?
The full FEFCO scope is carried across the whole portfolio: 0110 (single-piece and clam pack tray), 0114 (half-slotted), 0200/201/203/206 (slotted carton stand-to requirements), 0300/302 (telescope), 0401/411/412/427 (mailers-flipper/ crash-lock), 0501 (slide), 930/3933 (interior). Special box configurations can be pursued on quote. The Print+Die-cut+Fold+Glue+Pack page carries the full FEFCO matrix.
How long does order changeover take on a one-click servo folder gluer?
Cenwan lines equipped with the optional one-touch intelligent adjustment package can transition between orders in under 60 seconds. Without the module, this process can take 15-45 minutes for manual changeover. Facilities that operate 8 or more order changes per shift usually recoup the investment in the one-touch option in less than 18 months due solely to increased changeover labor efficiencies.
Does the line handle both folding carton (cardboard 200–800 g) and corrugated boxes (E/F/C/B/AB flute)?
The CW-W series and CW-IL-Single integrated line coverPapercover line cover paperboard 200-800 g, 3-plies and 5-plies for corrugated. The Dual-Channel Folder Gluer Line and Express Carton Line coverEP, 70 and 50 for postal line sizes 13#-7# for N-flute for postal line size 13#-7# for F-flute for postal line size 13#-7# for E-flute for postal line size 13#-7# for G-flute for postal line size 13#-7# for E-flute for postal size 13#-7# for F-flute for postal size 13#-7# for G-flute and for Eagle (AAA+) for 7-lines for AAA 7-flutes in a flagship for phone booth lines for AAA 7-flutes in a flagship for phone mask Flutes for phone booth lines plants converting both folding carton and corrugated lines are usually purchasing one CW-W rather than dual-channel lines.
Is a Cenwan automatic packing line different from an automatic carton machine sold by U.S. cartoning vendors?
Yes- the categories are on opposite ends of the carton supply chain. Cenwan is upstream packaging equipment that takes flat printed sheets and turns them into folded, glued, and stacked empty cartons ready to be shipped to the brand owner facility; a US "automatic carton machine" or end-of-line cartoner is downstream equipment that erects, fills, and seals the cartons around finished products. If your own plant's purpose is to convert the cartons for sale to others, evaluate Cenwan. If you are packing finished goods into the cartons, evaluate a cartoner vendor.
How is spare parts supply guaranteed for international buyers 5+ years out?
Cenwan sells a spare-parts depot network to more than 40 countries where, in case of emergency, dispatches are processed within 24 h. First 6 months of consumables (fiber comb and slitting knife) are shipped free of charge when purchasing a line, lifetime stock is tacitly included in the sale at then-market-price. 24/7 remote video diagnostics are free.
What certifications does Cenwan hold and how does that affect import compliance?
Lines have CE mark (Machinery Directive 2006/42/EC + EMC Directive 2014/30/EU + RoHS), ISO 9001:2015 quality management certification and EC Declaration of Conformity. Third-party SGS inspection before shipment can be supplied upon request to facilitate import customs clearances in all of the main markets: EU, North America, South East Asia and Middle East (4 zones out of 40+ countries footprint)
