Stereo Box Folder Gluer: CW-T-650 Specialty Machine for Cosmetic, Gift & Rigid Packaging

The stereo box folder gluer is a specialty folder gluer machine engineered for three-dimensional rigid boxes — the packaging format used by cosmetic brands, gift-box printers, jewelry producers, and consumer-electronics retail. Cenwan’s CW-T-650 runs 200-400 g paperboard at 150 m/min on a compact 5.8-meter footprint, with automatic servo feeding and adjustable folding geometry tuned for multi-axis 3D box structures.

Over a decade of specialty folding and gluing engineering, backed by after-sales support in 40+ countries, makes this the defensible choice when your output is rigid cosmetic boxes, premium gift containers, or retail-display packaging — not generic corrugated cartons.

Get Instant Quote →

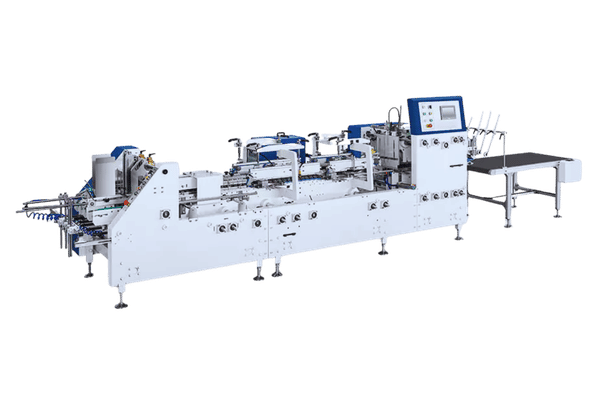

Stereo Box Folder Gluer CW-T-650
150 m/min
Max Line Speed
200-400 g
Paperboard Range
60-500 mm
Box Width (B)
5.8 m
Footprint Length
6.5 KW
Total Power
40+ countries
After-Sales Network

Why Stereo Boxes Break Standard Folder Gluers

A stereo box folder gluer is a specialty machine engineered for the three-dimensional rigid boxes that cosmetic brands, luxury gift producers, and consumer-electronics retailers rely on. These packages demand multi-axis folding geometry, heavier paperboard handling, and bond strength that standard carton folder gluer designs cannot deliver without compromise.

Teams that try to run stereo-box jobs on general-purpose machines hit three predictable failure modes, and each one costs production hours before the operator can diagnose it.

Alignment failure on multi-axis folds:

straight-line gluers fold a single 180° crease, whereas a stereo box needs two side folds at 180° plus a 160° pre-fold plus a lock-bottom hinge — different bend radii on the same blank.

Paperboard weight mismatch:

most general folder gluer machines are tuned for 80-600 g paper across a wide target, which sacrifices the precision window that 200-400 g rigid paperboard requires for consistent crease recovery.

Manual gluing plateau:

a skilled operator folding and gluing 3D rigid boxes by hand produces roughly 150-300 boxes per hour, whereas a dedicated automatic machine clears that ceiling by an order of magnitude without sacrificing crease accuracy.

Root cause is design intent. Any generic folder gluer machine optimizes for straight-line folding carton throughput — it was never tuned for the multi-axis hinge sequence that defines a stereo box.

Engineering Note — Why Multi-Axis Folding Matters

On a stereo box, the second side-fold and the fourth fold must each reach a full 180° integrated hinge without delamination. The CW-T-650 uses a bottom-belt plus bend-belt combination on the main folding section, with left and right bend-belt speeds controlled independently relative to the main shaft. That geometry control — not raw line speed — is what prevents the micro-wrinkle patterns that downgrade a luxury cosmetic box from sellable to reject.

Cenwan’s CW-T-650 solves this with three specific engineering choices: an independent servo drive on the feeder, a pneumatic vibrator that stabilizes thicker paperboard during transport, and adjustable front feeder knives (tungsten-steel blade, Bobst-grade Habasi feeder belt) that preserve bond geometry across the 200-400 g range. This yields high-speed, consistent folding and gluing output on the specific blank shapes that drive rigid-box production.

CW-T-650 Specifications & Decision Matrix

CW-T-650 specifications below come directly from Cenwan’s 2024-2025 factory catalog. Every value reflects the shipped machine, not an aspirational specification sheet.

Full Technical Specifications

ModelCW-T-650
Paper materialPaperboard 200-400 g/m²
Max line speed (no load)150 m/min
Total power6.5 KW
Machine weight1,500 kg
Footprint (L × W × H)5.8 × 1.25 × 1.6 m
Air pressure6 bar
Air consumption10 m³/h
Paste typeSolute-type (water-based, cold glue)
FeederIndependent servo drive, pneumatic vibrator, adjustable front knives
Feed beltBobst-grade Habasi (Switzerland)
Voltage options380V 3-phase / 220V single-phase (region-dependent)

Stereo Box Geometry Range

Dimension Range (mm) What It Controls
B (box width)60 – 500Outer box width at feed
A (inner fold height)8 – 20Top-closure lip
C (side fold)15 – 20Side-panel bend
D (body depth)up to 650Box body depth
E (length)120 – 600Long axis

Three design touches separate this machine from a generic box folder gluer machine. Independent servo drives on each feed belt prevent the mis-alignment patterns that punish thicker paperboard at speed. The adjustable side aligner corrects carton parallelism before the blank reaches the fold-knife, which matters because even a 1.5° skew visibly warps a 300 mm stereo box.

The hidden center-plate option (available on request) lets a single machine switch between small and large carton runs without a blade change — an operator saves approximately 20-35 minutes of make-ready time per changeover.

Decision Matrix — Which Configuration Fits Your Box Family

Use the matrix below to map your target box family to a CW-T-650 configuration in under a minute. Rows are ordered from smallest to largest typical box footprint.

Your Box Size (outer) Paperboard GSM Recommended Configuration Typical Industry
60-150 mm width, small lip 200-300 g CW-T-650 base + cosmetic feeder kit + narrow side aligner Cosmetic lipstick/skincare sets, jewelry flip-top
150-300 mm width, medium 250-350 g CW-T-650 base + extended pressure belt Gift chocolate/tea boxes, consumer-electronics retail
300-500 mm width, larger 300-400 g CW-T-650 + heavy-duty belt upgrade + stabilizer rollers Luxury goods, premium gift, retail-display packaging
Custom 3D shapes, irregular 200-400 g CW-T-650 + custom folding guides + pharma-ready option Pharmaceutical secondary, POP display boxes
“We tuned the CW-T model specifically for 3D rigid boxes because general-purpose flexo folder gluer machines consistently fail on the second side-fold when paperboard exceeds 300 grams. The servo-controlled bend-belt path is what keeps crease recovery inside 0.3 mm tolerance even at 150 m/min.”
— Cenwan Engineering Team, R&D Lead, Zhejiang Chengwang Intelligent Packaging Equipment

Stereo Box Folder Gluer vs Straight-Line Gluer vs Rigid Box Maker — Performance Comparison

Most folder-gluer buyer comparisons stop at “speed” and “paper range”, which hides the decisions that actually drive capital approval. The 3-way matrix below covers every parameter that matters during procurement, with specific numbers instead of High/Medium/Low labels.

Metric CW-T-650 Stereo Specialty Typical Straight-Line Gluer Rigid Box Maker (Setup)
Max speed (no load) 150 m/min 180-250 m/min 40-80 boxes/min
Paperboard range 200-400 g/m² 80-600 g/m² generic 800-2,000 g chipboard
Box types handled Stereo + straight-line + lock-bottom Straight-line + crash-lock only Rigid setup boxes only
Folding angles Multi-axis (180° + 160° + 180°) Single 180° Wrap-only (no fold)
Footprint (L) 5.8 m 11-16 m 8-12 m
Labor per shift 1 operator 1-2 operators 2-3 operators
Make-ready time < 15 min with servo recall 20-45 min typical 30-60 min typical
Best-fit run length Small-to-mid specialty Long runs, uniform blanks Luxury low-volume
Capital tier (US$) Mid ($18K-55K) High ($80K-250K) Very high ($120K-400K)

Three Ownership Tiers, One Decision

What the table above captures is the technical view. A financial view separates buyers into three clear tiers based on annual rigid-box volume and product mix.

Entry tier ($6-12K)

Chinese mini folder gluers such as the mini folder gluer machine class sold at $6,377-7,500 on Made-in-China work for hospitality-grade small-box runs under 65-300 mm width. They top out around 500 g paperboard and lack the multi-axis folding path that 3D rigid boxes need.

Specialty tier ($18-55K)

Cenwan’s CW-T-650 sits here. A premium over entry-tier machines buys multi-axis folding geometry, wider 60-500 mm feed width, heavier-duty servo components, and a 40-country spare-parts network. For rigid cosmetic, gift, and retail boxes, this is the defensible total-cost-of-ownership position.

Flagship tier ($80K-400K+)

European specialty folder gluer manufacturer brands push 20,000+ boxes/hour on flagship flexo lines — genuine capacity for converters running single-SKU runs north of 10 million units per year. For specialty rigid-box makers with mixed seasonal runs, that capacity rarely earns its capital cost.

Buyers whose output is 60% rigid cosmetic boxes and 40% gift-season surges will overshoot the entry tier within six months and overpay the flagship tier by 3-5× for unused capacity. The specialty folder gluer tier is engineered for exactly this shape of demand.
Get Instant Quote

Application Results —
Cosmetic, Gift, Electronics & Jewelry Packaging

Global luxury rigid box demand sits at roughly $4-5 billion in 2025 with a compound growth rate near 4% through the next decade, per packaging-industry research from GM Insights, Towards Packaging, and PackNode. Cosmetic packaging machinery specifically is tracking a 5.7-6.5% CAGR, with rigid cosmetic-box formats capturing a disproportionate share of that growth. Cenwan’s CW-T-650 is sized to sit inside four specific application pockets driving that demand.

Cosmetic Rigid Boxes

1. Cosmetic Rigid Boxes — Lipstick, Skincare Gift Sets

Typical Target

150 × 50 × 30 mm flip-top or slide-out boxes, 250-300 g matte paperboard, runs of 5,000-30,000 units. These jobs punish cheap machines because the visible interior crease surfaces are part of the luxury impression — a micro-wrinkle on the inside edge downgrades the entire SKU.

CW-T-650 Configuration

Base machine plus cosmetic feeder kit plus narrow side aligner. Target cadence is one job changeover every 2-3 hours with sub-15-minute make-ready.

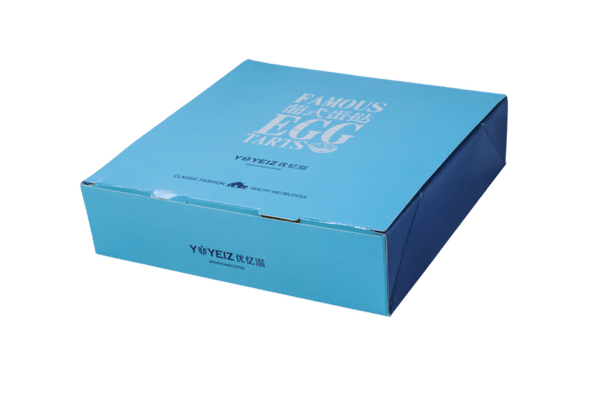

Gift & Chocolate Packaging

2. Gift & Chocolate Packaging — Tea Caddies, Confectionery

Typical Target

200 × 150 × 80 mm rigid tea boxes and chocolate gift containers, 300-350 g coated paperboard. These runs spike in Q4 and must handle seasonal SKU variation without extended retooling.

CW-T-650 Configuration

Base plus extended pressure belt. Independent servo control on each feed belt is what protects brand-owner quality standards during the 3-4× volume surge that defines a Q4 gift-box campaign.

Consumer Electronics Retail

3. Consumer Electronics Retail — Earbud & Accessory Boxes

Typical Target

180 × 120 × 40 mm rigid boxes for premium accessories (earbuds, cables, chargers, smart-home peripherals), 250-350 g paperboard. Consumer-electronics buyers are particularly sensitive to corner sharpness — the first visual impression on a retail shelf comes from the box’s edge geometry.

CW-T-650 Configuration

Base plus standard feeder. Adjustable front feeder knives are the critical component here; they preserve the 90° corner geometry that defines retail-shelf appearance.

Jewelry Presentation Boxes

4. Jewelry Presentation Boxes — Rings, Necklaces, Watches

Typical Target

100 × 80 × 30 mm flip-top rigid boxes, 300-400 g heavy paperboard with embossing or foil-stamping applied upstream. Runs are shorter (500-5,000 units) but the paperboard load is at the upper bound of CW-T-650’s specification.

CW-T-650 Configuration

Base plus heavy-duty belt upgrade. A 400 g upper limit is specified for sustained production — in practice, this machine handles occasional 450 g stock without glue-joint compromise, but warranty specification remains at 400 g.

30-60×

Silver Tier — TCO Framework

Productivity multiplier vs manual 3D box gluing, typical payback in 14-22 months at 10,000+ boxes/week volumes

Productivity multiplier above is expressed as a range, not a single number, because the ratio depends on blank complexity and operator skill. A two-operator manual line folding simple gift boxes may hit the upper bound of the manual range (300 boxes/hour per operator), while a three-fold rigid cosmetic box drops manual output closer to 150 boxes/hour. An automated side shows a similar range because line speed and job changeover frequency interact; 8,000+/hour is a realistic mid-range for mixed rigid-box production, not a theoretical ceiling.

Certifications, Compliance & Machine Safety Standards

Compliance credentials matter at two moments in the buying cycle: when procurement vets a new supplier, and when a brand owner audits the converter’s capability to handle regulated categories such as pharmaceutical secondary packaging. Cenwan’s CW-T-650 carries the credentials below.

CE Marking

EU Machinery Directive 2006/42/EC compliant for electrical, mechanical, and operator safety

ISO 9001:2015

Cenwan’s Zhejiang factory operates under a certified quality management system

ISO 536:2019

Paperboard grammage testing reference for feed-range verification

Voltage Options

380V 3-phase standard, 220V single-phase available on request

Air Standard

6 bar pneumatic at 10 m³/h — compatible with standard shop-floor compressors

Operator Safety

Interlocked guarding on feeder, folding, and compression sections per CE
Paperboard certification is handled at the material side, not the machine side. Cenwan’s 200-400 g/m² range is calibrated against ISO 536:2019, which defines the grammage-determination methodology that carton and paperboard suppliers use to specify their stock. If your paperboard supplier issues a grammage certificate under ISO 536, the CW-T-650’s feed-range specification is directly interpretable — no conversion step required.

Compliance Note — Pharmaceutical Secondary Packaging

Pharmaceutical secondary cartons typically require serialization-compatible inspection, Braille embossing or positioning, and documented batch traceability. CW-T-650 base configuration does not include pharmaceutical-grade inspection; our pharma-ready option adds Braille-compatible positioning and a configurable sensor mount for upstream inspection integration. Confirm compliance requirements with your regulatory team before specifying configuration.

Buyer Guide — Lead Time, Shipping & After-Sales Support

Procurement decisions on folder gluer machinery pivot on three concrete questions: how is the machine configured, when does it arrive, and who answers the phone when something breaks 18 months in. The sections below answer each one.

Lead Time

Standard build 6-10 weeks from confirmed purchase order
Custom build (pharma-ready, custom folding guides): 8-14 weeks
Rush option stock-machine availability varies — contact Cenwan directly for current factory-floor inventory

Shipping

One CW-T-650 fits in a single 20-foot container for FOB Ningbo or Shanghai export. Standard export-packing specification includes desiccant, corner-impact protection, and fumigated wooden crating compliant with ISPM 15 phytosanitary requirements for international transport.

After-Sales Network & Due Diligence

Before signing, request the items below from any folder gluer supplier you evaluate. If the answer is vague, the warranty document is effectively a sales prop.

✓ Written list of distributor locations by country
✓ Average response time to a stop-production service ticket (in hours)
✓ Spare parts availability window (5 years minimum is industry best practice)
✓ Remote diagnostic support protocol and covered hours
✓ Commissioning engineer visit duration and whose travel cost
Cenwan maintains a 40+ country after-sales and spare-parts network, a commitment that comes from over a decade of specialty folder gluer manufacturing and the philosophy that partnership outlasts the initial sale. Standard warranty runs 12 months from commissioning and is extendable to 24 months; remote diagnostic support is provided during customer business hours with escalation to on-site engineer dispatch when required.
Get Instant Quote

Stereo Box Folder Gluer Tools

Paperboard Speed Matrix

Match paperboard materials with optimal running speeds to maximize production efficiency.

Access Tool

ROI Calculator

Calculate your return on investment and payback period to drive data-backed purchasing decisions.

Calculate Now

Frequently Asked Questions

A stereo box folder gluer adds a multi-axis folding path — typically two 180° side folds plus a 160° pre-fold plus a lock-bottom hinge — that a standard straight-line folder gluer machine cannot execute without mechanical re-engineering. The feeder and bend-belt speeds are independently servo-controlled to handle the heavier 200-400 g paperboard that rigid boxes require.

Our primary range for CW-T-650 is 60-500 mm box width (dimension B), 120-600 mm length (E), 8-20 mm inner fold height (A), and up to 650 mm body depth (D). This window covers the majority of cosmetic, gift, electronics-retail, and jewelry presentation formats. For boxes outside this envelope, see the decision matrix above or request a custom geometry review.

CW-T-650 is specified for 200-400 g paperboard, not corrugated flutes. Corrugated-box production requires CW-W-series or CW-G-series machines in Cenwan’s lineup, which are engineered for E/F/C/B/AB flute profiles. Using a stereo-box gluer on corrugated stock compromises bond quality and accelerates belt wear.

Sustained production is specified between 200 and 400 g/m². Short runs up to 450 g are handled without mechanical stress, but the warranty specification remains at 400 g. For premium jewelry stock above 400 g, specify the heavy-duty belt upgrade at order time.

Trained operators folding and gluing 3D rigid boxes by hand typically produce 150-300 boxes per hour depending on blank complexity. Cenwan’s CW-T-650 at 150 m/min translates to a straight-line equivalent near 8,000-9,000 boxes per hour on simple formats — a 30-60× multiplier. Complex multi-axis blanks reduce the ratio; the number is expressed as a range because the inputs vary.

Standard configurations ship 6-10 weeks after confirmed purchase order. Custom configurations with pharma-ready or custom folding guides extend to 8-14 weeks. Warranty runs 12 months from commissioning, extendable to 24 months as a quoted option.

Yes. Standard orders include remote video commissioning plus an on-site engineer visit for installation supervision and two-shift operator training. On-site visit duration is scoped at the quote stage and typically runs 5-10 business days depending on site preparation status.

Yes. Cenwan’s spare-parts supply commitment runs the production life of the CW-T-series, and critical consumables (feed belt, glue-wheel, pneumatic components) are stocked in regional distributor locations across our 40-country network. Specify serial-number-matched parts to avoid compatibility drift between generations.

Default factory configuration is 380V three-phase. A 220V single-phase option is available for North American and residential-industrial environments. Direct 110V single-phase operation is not supported because 6.5 KW total load exceeds single-phase 110V current capacity under continuous production; a step-up transformer is required.

On rigid-box production specifically, a general-purpose folder gluer machine can incur a 15-30% reject rate on multi-axis creases plus 20-45 minute changeover times. Cenwan’s CW-T-650 reduces both — reject rate drops below 2% and changeover falls under 15 minutes with servo recall. Exact ROI depends on your reject-cost and volume mix; request a custom analysis for your specific shop profile.
