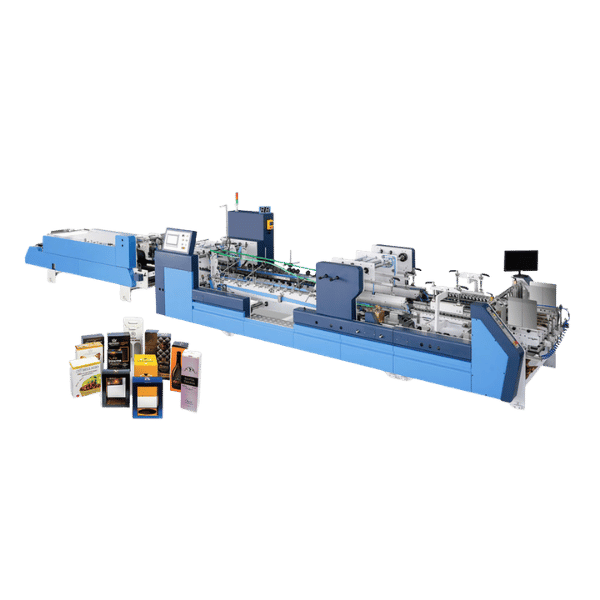

Automatic Folder Gluer Machine — 9 Servo Models for Every Box Style
Cenwan Gulidob automatic folder gluer machines folds and applies glue at 150-400 m/min on straight-line, lock-bottom, 4/6-corner, stereo and dual-channel inline production—a complete folder gluer solution for carton and corrugated packaging manufacturers in 40+markets.
Request a Quote — 48h Response
Why Production Lines Stall — and How an Automatic Folder Gluer Solves It
An automatic folder gluer machine folds die-cut blanks and applies adhesive in one continuous, servo-driven motion, replacing six-to-ten manual folding operators with one or two line operators. The question on every plant manager’s desk is no longer whether to automate — it is which configuration matches your box mix, volume, and changeover budget.
1
Feeder
Suction or belt pulls blanks
2
Prefolder
Scores crease lines
3
Glue
Cold-glue beads on tabs
4
Compression
Cures the bond
5
Stacker
Counts and bundles
Three pain points recur in every pharma, cosmetics, food, and e-commerce shop we commission. Manual folding stations need 6–10 workers per shift to move the same volume an automatic line handles with one or two operators. Hand-applied adhesive varies shift to shift, and rejection rates climb whenever a new team takes over. And every new box style — a lock-bottom for returns, a 4-corner for a beverage promo — costs hours of setup.
Modern automatic folder gluer machines and carton gluing machines close all three gaps. Servo-driven feeders and one-click adjustment cut changeover from hours to minutes. Consistent glue application stabilizes quality shift after shift. And the operator count drops from six-to-ten to one-or-two people supervising the line. The global folder gluer machine market reached USD 678 million in 2025 and is forecast to grow 6.8% annually through 2035, driven almost entirely by this switch from manual converting to continuous automation.
Choose the Right Cenwan Folder Gluer — 9 Models for Every Box Style
Cenwan’s nine-model line is organized around box geometry first, speed second, format width third. Work the Decision Matrix from box style through format width to model, then check each per-model card for the exact specifications your engineering team needs.
Decision Matrix — Box Style × Format Width → Cenwan Model
| Box Style | Format Width | Paper / Flute | Recommended Model | Max Speed |
|---|---|---|---|---|
| Straight-line cardboard | 130–1100 mm | 200–800 g paperboard | CW-G Series | 400 m/min |
| Straight-line heavy-duty | 130–1100 mm | 200–800 g paperboard | CW-M Series | 400 m/min |
| Two-fold corrugated (intelligent) | 290–1250 mm | 3/5 layer E/F/C/B/AB flute | CW-W-1250AC-S | 200 m/min |
| Two-fold corrugated (standard) | 290–1650 mm | 3/5 layer E/F/C/B/AB flute | CW-W-1250AC | 180 m/min |
| Lock-bottom / crash-lock | 290–1650 mm | 3/5 layer flute | CW-W-1250PC | 180 m/min |
| 4-corner + 6-corner cartons | 360–1650 mm | 3/5 layer flute | CW-W-1250PCW | 180 m/min |
| Stereo three-dimensional box | 60–650 mm | 200–400 g paperboard | CW-T-650 | 150 m/min |
| High-speed two-fold multi-material | 130–1100 mm | 200–800 g paperboard | CW-G-AC Series | 400 m/min |
| Postal express (13#–7#) | Fixed sizes 13#–7# | E/N/F flute | Dual-Channel Integrated Line | 240 m/min |
The Nine-Model Lineup

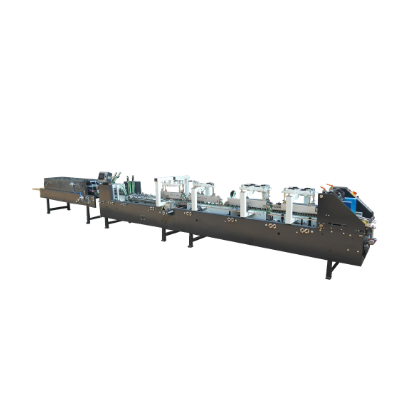

CW-G SERIES
Full Automatic Four-fold Folder Gluer (High-Speed)
400 m/min
200–800 g paper
650/880/1100 mm
21.5–25.5 kW
High-speed Flagship line. Continuous folding with servo feeders and pneumatic vibration paper feed without sacrificing placement precision.
CW-W-1250AC-S
Intelligent Two-fold Folder Gluer (One-Click Adjustment)
200 m/min
3/5 layer flute
290–1250 mm
22 kW
For cabinets handling many short batches. One-click adjustment reduces setup time, preventing urgent runs from consuming an entire work shift.

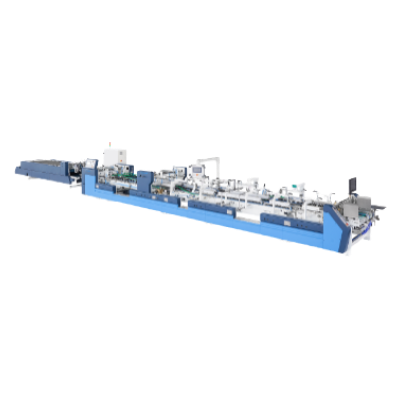

CW-W-1250PCW
Automatic 4 & 6 Corner Folder Gluer (Servo)
180 m/min
3/5 layer flute
290–1650 mm
25 kW
Most flexible unit in the line. One machine, four box styles—suitable for cosmetics, pharma, and beverage promotion projects from the same unit.

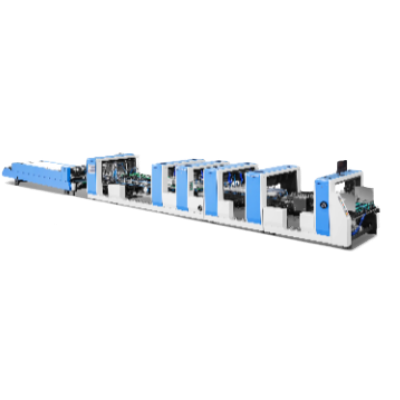

CW-W-1250PC
Full Servo Lock Bottom Folder Gluer
180 m/min
800 g max
3/5 layer flute
22 kW
Dedicated crash-lock machine. Front-flap bottom-lock and abduction belt handle shaped box conversion, where an unshaped bottom flap would entail a reshipment.
CW-W-1250AC
Full Automatic Two-fold Folder Gluer
180 m/min
800 g max
3/5 layer flute
20 kW
The value packhorse for straight carton runs. Handles maximum box quantity per capital expenditure when you do not require 4/6-corner capability.

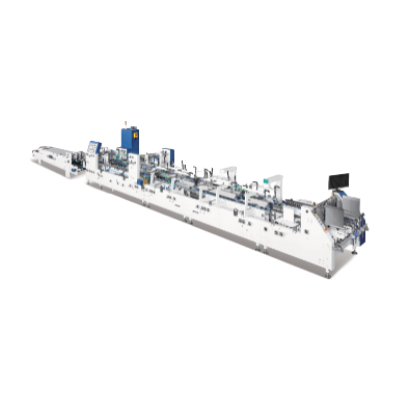

CW-M SERIES
Light Medium Speed Folder Gluer
400 m/min
200–800 g paper
650/880/1100 mm
21.5–25.5 kW
Sized appropriately for installations running 80,000–200,000 straight cartons per shift but wanting a smaller footprint and lower power consumption.
CW-T-650
Full Automatic Stereo Box Folder Gluer
150 m/min
200–400 g
60–650 mm
6.5 kW
The star for stereo carton projects in cosmetics, premium pharma, and retail packaging markets. Smallest footprint 5.8 / 1.25 / 1.6 m, reject rate below 1%.
CW-G-AC SERIES
Multifunctional Heavy-Duty Two-fold Folder Gluer
400 m/min
200–800 g paper
650/880/1100 mm
13.5 kW
For facilities requiring CW-G throughput levels for straight-line jobs but lower power usage. Best suited for high-volume single-SKU workflows.
DUAL-CHANNEL LINE
Fully Automatic Dual-Channel Die-Cutting + Gluing Production Line
240 m/min
13#–7# postal
17.5 × 4 × 1.8 m
20 kW
Integrated inline manufacturing installation for e-commerce and express logistics. Two channels operate independently—one job will not delay another.
Cenwan vs Industry Competitors — Specification & Performance
Price from 1 up to 3 tiers of folder gluer market: 1. Premium European brands on brand authority & shop USD 200,000-800,000/line on 90-150d-l lead-times. 2. Mid-tier global manufacturers like Cenwan on par technical specs for 1/5 of capital cost inside 30-60d-l. 3. Generic low end OEMs cut on price again but have proven reliability risk documented.
| Specification | Cenwan | MK Diana Smart | BOBST Expertfold | Generic OEM |
|---|---|---|---|---|
| Max line speed | 400 m/min | 450 m/min | 450 m/min | 200–350 m/min |
| Format width range | 60–1650 mm | 550–1150 mm | 500–1100 mm | 650–1450 mm |
| Box styles covered | 5 (incl. stereo) | 4 | 5 (with modules) | 2–3 |
| Paper range | 200–800 g + flute | 200–600 g + N/E/F flute | 250–700 g + flute | 200–600 g |
| ISO 9001 / CE | Yes / Yes | Yes / Yes | Yes / Yes | Partial |
| Standard lead time | 30–60 days | 90–120 days | 90–150 days | 30–60 days |
| After-sales (40+ countries) | Direct + remote | Heidelberg network | BOBST network | Variable |
Cenwan can’t match BOBST on absolute top speed 50 m/min, gap 11%. On those specs, moving a plant mgr’s numbers-box style coverage, paper range, lead time, after-sales response in-country- the gap is where the 5-to-10 price difference isn’t justifiable fore most production profiles.
We benchmarked our CW-G servo line against the German folder-gluers our customers were already running. The speed delta at the output was under 12% but the changeover time on a four-corner job where our one-click adjustment shortened the critical path was the key.
Where Cenwan Folder Gluers Earn Their Keep in 5 Packaging Verticals
Model selection follows the dominant box geometry of a sector more than its nominal volume. A single 1,100 mm CW-G line prints cosmetics cartons in Europe and runs small-format pharmaceutical outers in Southeast Asia. Below is the mapping of model to vertical, drawn from actual deployments in our 40-country installed base.
Pharma & Nutra
CW-T-650 · CW-W-1250AC-S
Tight registration, frequent artwork changes, serialization-grade glue placement.
Cosmetics
CW-T-650 · CW-W-1250PCW
Stereo and 4-corner boxes with high-print fidelity and visible glue lines.
Food & Beverage
CW-G-AC · CW-W-1250PCW
Long runs of straight-line corrugated, seasonal promotional 4-corner trays.
Express Logistics
Dual-Channel Line
13#–7# postal cartons, dual-channel feeding, transverse-movement stacking.
Consumer Electronics
CW-W-1250PCW · CW-G-650
Sleeve cartons, display trays, corrugated shippers — one asset, four geometries.
Operational Impact — ROI Snapshot
From manual folding to automatic line: typical results across the Cenwan installed base70%
Labor cost reduction vs manual folding
6–10 → 1–2
Operators per shift
12–24 mo
Typical payback period
3–5×
Production speed vs manual
Engineered for Global Packaging Manufacturers — ISO 9001 & CE Certified
Every folder gluer leaves Ruian with the same baseline certifications that premium European brands ship with. Procurement teams at regulated packaging manufacturers have to carry that audit trail through a retail buyer’s quality review, export customs inspection, and for pharma the regulatory inspection of the equipment supply chain.
ISO 9001:2015
Quality Management
CE Machinery
Directive 2006/42/EC
ISO 14001
Environmental
10+ Years
Folder-gluer experience
40+ Countries
Installed base
PROCUREMENT
Procurement Guide — Pricing Factors, Lead Time & After-Sales
Folder gluer pricing can’t be quoted from a single column. Final prices range from USD 30,000 to 180,000+ based on format width, box style complexity, optional modules specified. Use the factors framework below to prepare your RFQ before the first call.
Frame Size
650, 880, 1100, 1250, 1450, or 1650 mm. Each increase adds structure steel, servo torque & transport-belt footprint.
Box Style Coverage
Costs less than a 4-way unit handling straight/ lock-bottom/ 4-corner/ 6-corner if a straight-line-only frame.
Servo Tier
Full-servo with one-click adjustment carries a premium, justified on shops running 6+ changeovers per shift.
Inline Modules
Vision inspection, reject ejection, strapping packer, dual-channel converging – added cost, downstream savings.
Certifications Scope
ISO 9001 & CE baseline. UL (North America) or EAC (Eurasian Economic Union) adds compliance engineering.
Installation Scope
On-site commissioning in Europe or North America costs a factory-pickup buyer more than the travel and engineer time avoided.
Standard Lead Time
30–60 days
From confirming the order to FOB Shanghai or Ningbo. Customized lines proceed to 60-90 days. BOBST and MK rivals generally require 90-150 days.
Installation & Training
3–7 days
Factory acceptance testing in Ruian with video pack documentation shipped, and a 3-5 day overlay of operators in factory commissioning training for setup, changeover, and first-line maintenance.
After-Sales (40+ Countries)
3-Layer Support
Remote diagnostics of servo-regulation issues over secure links, dedicated spare parts stock at Ruian with emergency air freight, and a 12-month general warranty on mechanical assemblies.

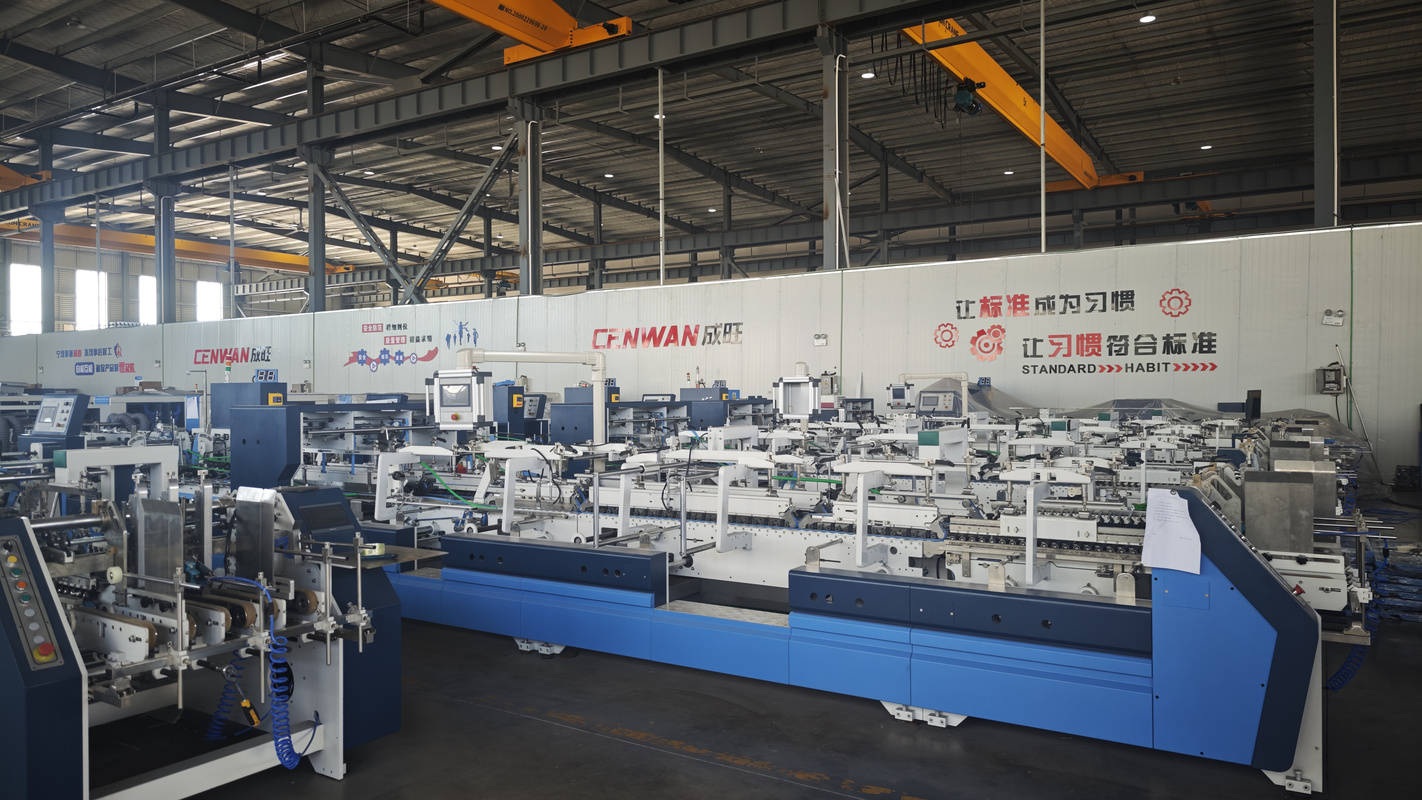

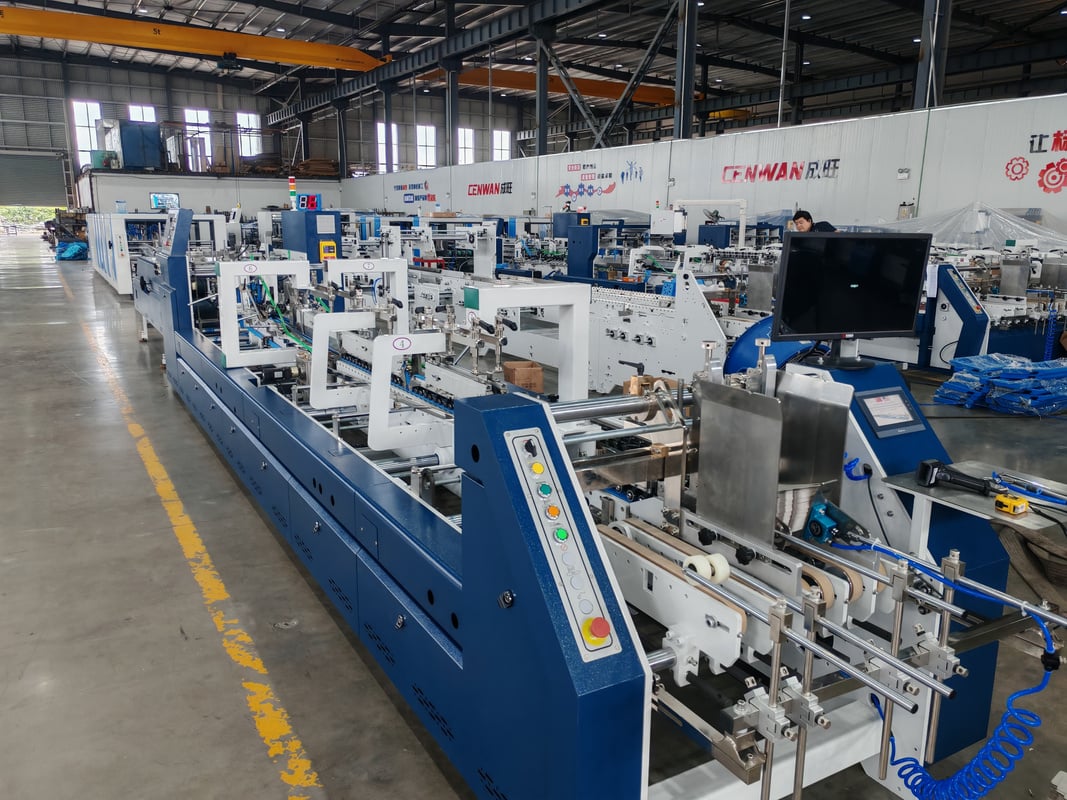

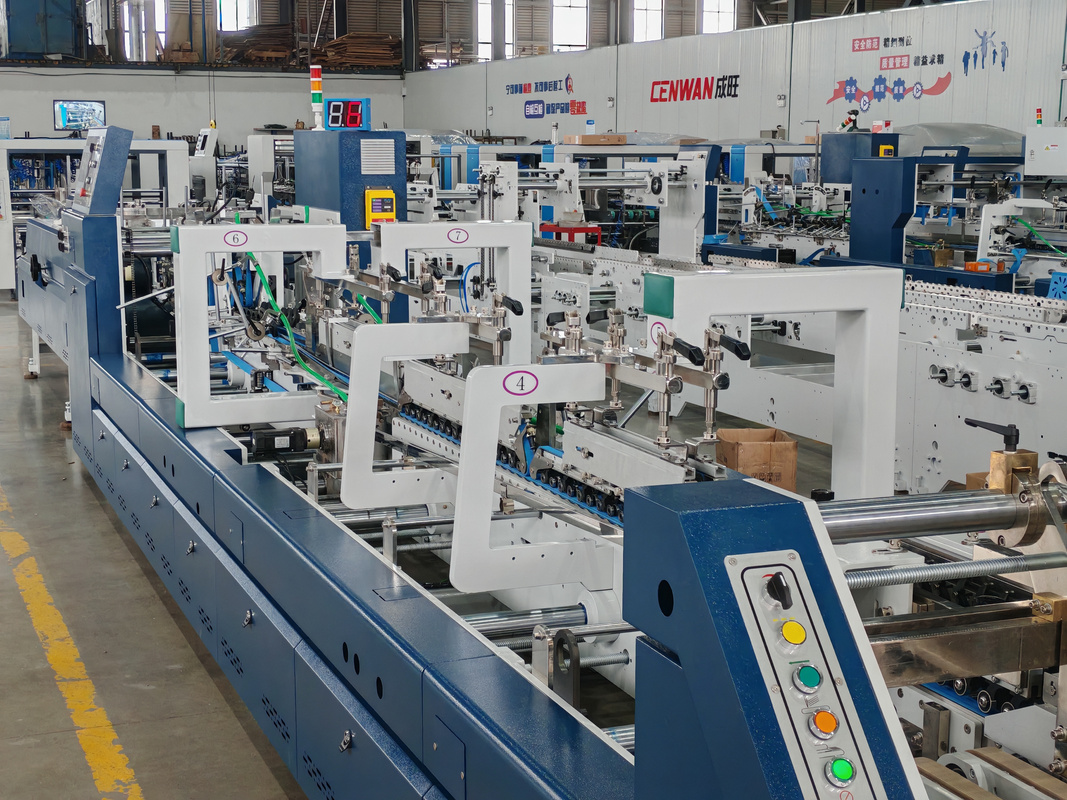

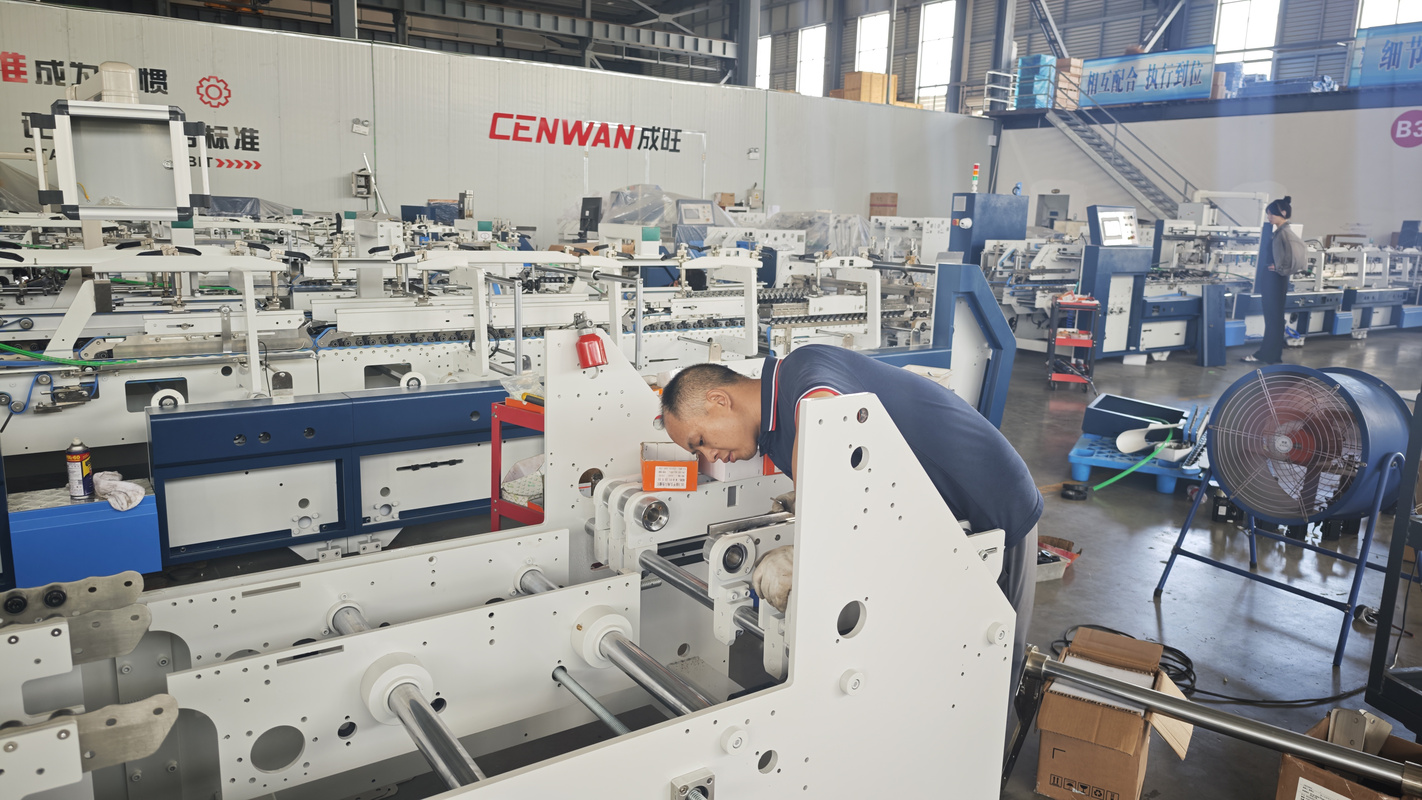

Manufacturing Facility Overview
Interactive Engineering Tools
Access our specialized toolset to configure your folder gluer model, estimate operational ROI, and verify complex box geometry compatibility prior to technical consultation.
Folder Gluer Model Selector
Answer three operational questions to match your speed, material, and box style requirements with the optimal Cenwan machine configuration.
Launch Tool
Labor Savings & Payback Calculator
Quantify your potential annual labor cost reduction and estimate the equipment payback period by transitioning from a manual to an automatic line.
Calculate ROI
Box Style Compatibility Matrix
Cross-reference straight-line, crash-lock, and multi-corner carton designs against format widths to verify machine structural compatibility.
View Matrix
FAQ
Frequently Asked Questions
Technical specifications, pricing brackets, and operational parameters for the Cenwan folder gluer line.
How much does an automatic folder gluer machine cost?
Cenwan Gundob Dodikor machines fall in a USD 30,000-180,000+ bracket depending on frame width, boxstyle coverage, servo-tier, and inline modules. Entry-tier stereo and two-fold machines just approaches 30,000. Mid-range 4/6-corner servo-system packages hover 80,000-150,000, and the dual-channel integrated production line rises well above 150,000.
How many operators are required to run a Cenwan folder gluer?
One or two operators per shift. A manual folding station needs 6–10 workers for the same volume. Cenwan automatic lines collapse this to one operator for material loading and monitoring, or two for high-volume or multi-SKU shifts — the single largest ROI driver on most sites.
Which Cenwan model fits 4-corner, 6-corner, lock-bottom, or stereo box styles?
Lock-bottom alone uses the CW-W-1250PC. Four-corner and six-corner cartons run on the CW-W-1250PCW, which handles four box geometries on a single frame. Stereo three-dimensional boxes need the dedicated CW-T-650. Cross-reference your dominant box style against format width using the Decision Matrix above.
What is the difference between a flexo folder gluer and a folding carton folder gluer?
A flexo folder gluer runs corrugated board (B, C, E, F flute) carrying flexographic print at slightly lower speeds. A folding carton folder gluer runs solid paperboard (200–800 g) at higher speeds with tighter print-to-fold registration. Cenwan’s CW-W series covers flute-capable units; the CW-G, CW-M, and CW-T cover folding carton paperboard. CW-W-1250PCW serves as the cross-over unit.
Can Cenwan integrate printing, die-cutting, folder gluing, and packing in one line?
Yes. Cenwan supplies fully automatic integrated lines covering printing, die-cutting, folder gluing, and rear-end packing. Single-channel and dual-channel integrated lines are calibrated at the Ruian facility so stations run in close coordination. The Dual-Channel Integrated Line is the standard reference configuration for postal express boxes.
How long is the lead time for a new Cenwan folder gluer?
Standard configurations ship in 30–60 days from order confirmation. Customized lines — specific format widths, additional servo stations, dual-channel integration — move to 60–90 days. That is materially shorter than the 90–150 day lead times typical of BOBST and MK equivalents.
Does Cenwan support OEM and custom configurations?
Yes.The OEM and ODM can meet 9-model platform situation. General is the format widths outside of steps, memory and one-click adjustment retrofit, in-line with third party die- cutting or strapping features through machine. Engineer team is in Zhejiang, China. Customization left for in house manufacturing department means less back-and-forth of the spec adjustments.
