High-Performance Corrugated Folder Gluer Machines for Box Production
Cenwan flexo folder gluer machines turn flat corrugated sheets into finished, printed and glued boxes- at 200-260 m/min, with vacuum transfer registration, and one click changeover. Mid-to-high-end FFG and folder gluer machine lineup serving 40+ countries.
200-260
m/min
Max Speed
1-10 mm
Sheet Caliper
Range
RSC/HSC/
4-6 Corner
4-6 Corner
Box Style
Support
60-90
Days
Lead Time
10+
Years
Engineering Focus
40+
Countries
Served
Corrugated Box Production Bottlenecks Cenwan FFG Solves
A corrugated folder gluer- also called a flexo folder gluer (FFG) when integrated with flexographic printing- replaces five or six separate workstations with one continuous production line. It feeds, prints, slots, folds, applies adhesive, and stacks finished corrugated boxes at 200-400 boxes per minute with one to two operators.
For corrugated box plants still running standalone flexo printers, slotters and semi-automatic folder gluer machines, three bottlenecks compound daily:
01
Labor scarcity is now the #1 silent cost.
A typical manual line uses 5-6 operators per shift across feeding, printing, slotting, folder gluing, and stacking- and skilled folder gluer operators are getting harder to find every year. At a fully burdened $35/hr labor rate, two-shift operation runs $672,000 annually just on direct labor. A modern flexo folder gluer collapses that to 1-2 operators per shift, freeing supervision and reducing dependency on hard-to-replace skill.
02
Manual changeovers leak time.
Each job change creates 50-150 meters of corrugate scrap and consumes 30+ minutes of skilled operator attention. In a Midwest US corrugated plant we benchmarked, changeover dropped from 35 minutes to 11 minutes (a 69% reduction) after replacing a semi-automatic folder gluer with a mid-range FFG with CNC changeover. For high-mix, short-run shops, this single metric often outweighs nominal running speed.
03
Print-to-fold registration drift causes 8% material waste.
Standalone flexo printers and downstream folder gluer machines lose registration when sheets transfer between machines, especially with warped boards or light-weight papers. Cenwan FFGs integrate vacuum transfer between print stations, slotter, and folder gluer section – so registration is detected and corrected immediately. Industry data shows manual lines waste roughly 8% of material; an integrated flexo printer folder gluer holds waste to about 3%, saving $75,000 per year on a 60,000-box-per-day operation.
MODELS
Cenwan Corrugated Folder Gluer Lineup — Models & Selection
Cenwan’s mid-high series covers the full range of corrugated converting needs, from cardboard-only pasting machines to fully automatic flexo printing folder gluer lines. Each model is a folder gluer machine engineered for durability, stable production speeds, and operator-friendly setup. One-click adjustment on mid-high tier units stands out as the most-requested productivity feature — it cuts changeover time and reduces the workload on technical engineers, addressing the industry-wide shortage of experienced folder gluer operators. For conversion of a combination of RSC and die-cutting work, Cenwan options the integrated rotary die station so one machine including the round leg and perimeter work.

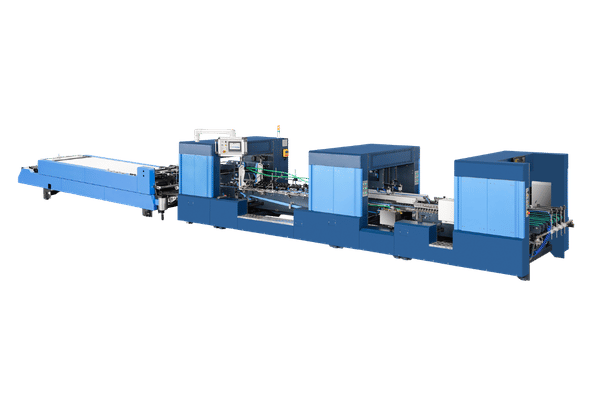

Corrugated Box Gluing Machine
Production-glad corrugated box gluer for RSC, HSC, FOL and similar straight line FEFCO 02xx style cartons. Gluer with servo controlled feeder, urethane gluing belts, vacuum transfer and counter ejector built for peak load production runs.
- Speed: up to 260 m/min
- Paper: 210–800 g/m² A/B/E flute
- Box Style: RSC, HSC, FOL, glued boxes
- Glue: hot melt or cold cold-set adhesive
- Die Cut: Optional rotary station
- Changeover: standard / optional one-click

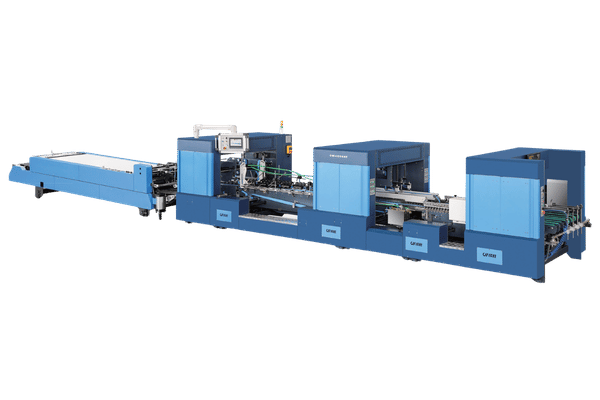

Automatic Pasting Machine
Automatic pasting machine. Packaged single flute corrugated sheets or corrugated boards (production process based more on flap gluing than on full flexo printing). Throughput-tuned for medium & large format corrugated cartons with uniform control of the adhesive pattern.
- Throughput: tuned for medium-large carton
- Adhesive: hot melt glue or PVA
- Material: corrugated cardboard sheet
- Format: single & multi-flute compatible
- Config: in-line or stand-alone

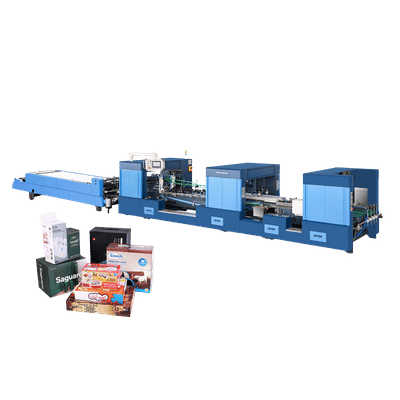

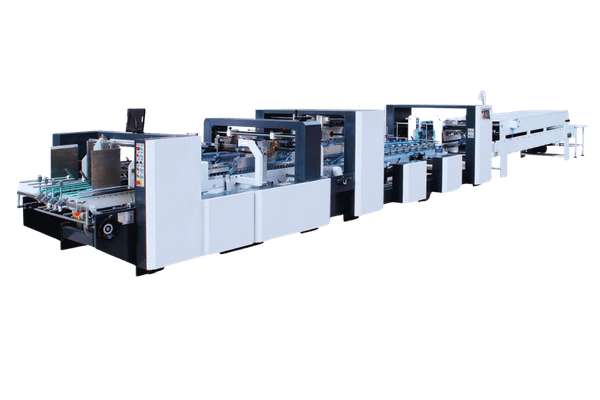

Box Folding and Gluing Machine
Folding and gluing machine for RSC, 4-corner, 6-corner and crash-lock-bottom corrugated foldie box. Modular folding rails with sensor-sensed crease, adjustable forming wheels, and dispatch capable bottom folder to produce many finished styles.
- Box Style: RSC, HSC, 4/6-corner, crash-lock
- Rails: modular, vacuum-assisted
- Sensor: crease & flap position
- Output: counter ejector + bundle stacker
- Operator: semi-auto to full automatic
Decision Matrix: Which Cenwan Corrugated Folder Gluer Fits
| Box Style Focus | Daily Volume Target | Budget Tier | Recommended Cenwan Series |
|---|---|---|---|
| RSC straight-line, single flute | 20,000–60,000 boxes | Mid-range | Corrugated Box Gluing Machine |
| Multi-flute pasting (no print) | 15,000–50,000 sheets | Mid-range | Automatic Pasting Machine |
| 4/6-corner or crash-lock-bottom | 10,000–40,000 boxes | Mid-to-High | Box Folding and Gluing Machine |
| Print + slot + fold + glue inline | 50,000–100,000+ boxes | High-end | Auto Integrated Line (single/dual-channel) |
DATA
Cenwan vs Bobst vs BW Papersystems vs Domestic — Data-Driven Comparison
Choosing a flexo folder gluer machine is a six- to seven-figure capital decision, and spec sheets from major OEMs rarely line up on the same axes. Our comparison below uses common, measurable parameters — not “industry-leading” or “premium” claims — so engineering, procurement, and management can see the trade-offs together.
| Metric | Cenwan Mid-High | Bobst FFG (e.g. 8.20 EXPERT) | BW G-Grafix | Domestic China Avg |
|---|---|---|---|---|
| Max sustained speed | 200–260 m/min | up to 350 sheets/min | up to 350 sheets/min | 120–180 m/min |
| Sheet caliper range | 1.0–10.0 mm | 0.5–12.0 mm | 1.0–10.0 mm (0.04–0.4 in) | 1.0–7.0 mm |
| Vacuum transfer (print-to-fold) | Yes, standard | Yes, premium tier | Yes (low-crush feed rolls) | Optional |
| One-click adjustment / CNC | Optional, mid-high tier | Yes (highest tier) | Quick set-up modules | Rare |
| Box style range | RSC, HSC, 4/6 corner, crash-lock | RSC, HSC, complex inline | RSC focus, inside print option | RSC mostly |
| Rotary die cut option | Yes, integrated | Yes (premium tier) | Yes (servo-driven option) | Limited |
| Lead time | 60–90 days | 180+ days | 180+ days | 30–60 days |
| Price tier (2026 data) | $$ ($400k–$800k) | $$$$$ ($800k–$1.8M) | $$$$ ($800k–$1.5M) | $ ($50k–$300k) |
| Spare parts response | 24/7, 40+ countries | Regional service hubs | Barry-Wehmiller global network | Domestic only |
Engineering Note: Sustained vs Peak Speed
OEM datasheets state peak speed; long-term plant uptime is 85-95%; an optimum 350spd/sec line routinely produces 250-290 spm during a full shift. When considering a flexo folder gluer, request sustained performance at your normal box style, not peak speed at an optimum configuration.
The Non-Obvious Takeaway
Bobst flexo folder gluer and BW G-Grafix are exceptional machines, but they price and lead-time themselves out of the mid-volume converter market — exactly the segment where Cenwan operates. Domestic Chinese alternatives are 30–60% cheaper than Cenwan mid-high tier, but typically lack vacuum transfer, sustained-speed governors, and 24/7 spare parts response.
This trade-off is real: for everyday corrugated production, Chinese folder gluer machines deliver good quality; for ultra-high reliability at maximum speed, European brands have an edge. Cenwan’s target customer is one who needs a European registration, reliable equipment but 60-90 day delivery cycle, payback period of about 12 months.
Industry Authority Reference: FFG vs Specialty FG vs Inline
| Class | Substrate | Typical Speed | Box Styles | Best For |
|---|---|---|---|---|
| Flexo Folder Gluer (FFG) | Corrugate, B/C/E flute | 150–350 sheets/min | RSC, HSC, FOL inline | High-volume corrugated converters |
| Specialty Folder-Gluer (Corrugated) | Corrugate, mixed flute | 80–200 boxes/min | 4/6 corner, crash-lock, POP displays | Specialty / mixed shops |
| Folding Carton Folder-Gluer | Paperboard 12pt+ | up to 9,000 sheets/hr | Folding cartons, reverse-tuck, complex styles | Pharma, cosmetics, food cartons |
| Auto Integrated Line | Corrugate, sheets | Print + slot + die-cut + fold + pack inline | RSC + custom slot | Top-end converters chasing minimum operator count |
Box style codes are based on the FEFCO Code (international standard for corrugated box designs), which ICCA has adopted as its reference protocol.
Silver Tier ROI
Mid-Range FFG Payback Snapshot
Industry baseline at 60,000 boxes/day, 2 shifts, fully-burdened labor at $35/hr, replacing a semi-automatic 5-operator line with a mid-range Cenwan-class flexo folder gluer.
~$555k
Annual Savings
12–18 mo
Typical Payback
-70%
Operator Headcount
8% → 3%
Material Waste Rate
Industry baseline figures, not a Cenwan-specific guarantee—actual payback depends on labor rate, volume, changeover frequency, and current waste rate. Use the calculator below for a model customized for your plant.
Run the labor-savings payback calculator →
We spent two years tuning the vacuum transfer geometry between print station and slotter— small changes in low-crush roll diameter shifted registration drift by 0.2 mm at 250 m/min. That’s the difference between 2% scrap and 5% scrap on a light-flute job.
OUTCOMES
Real Customer Outcomes Across 40+ Countries
Across more than 40 countries in North America, Europe, Latin America, the Middle East, and Southeast Asia, Cenwan ships folder gluer machines and integrated corrugated converting equipment to mid-volume converters. Our installed base runs in food, pharmaceutical, e-commerce / express logistics, cosmetics, electronics, and industrial packaging plants — each with a different set of sustained-speed, box-style, and changeover priorities.
Industry Reference Case · Mid-volume corrugated converter
Replacing a 5-operator semi-automatic line with a mid-range FFG
A 55,000 boxes/day plant recently replaced a 2-color standalone flexo printer+separate slotter + semi-automatic folder gluer+manual stacking line with a single mid-range high-speed flexo folder gluer (3 colors, semi-automatic CNC changeover, counter ejector). Twelve months later: operators per shift cut from 5 to 1.5 (-70%), daily output improved from 48,000 to 58,000 boxes (+21%), waste rate improved from 7.8% to 2.9% (-63%), changeover time cut from 35 minutes to 11 minutes (-69%). Actual payback reported, 14.5 months.
-70%
Operators per shift
(reduced from 5 to 1.5)
(reduced from 5 to 1.5)
+21%
Daily output
(48,000 to 58,000 boxes)
(48,000 to 58,000 boxes)
-63%
Waste rate
(improved from 7.8% to 2.9%)
(improved from 7.8% to 2.9%)
-69%
Changeover time
(cut from 35 mins to 11 mins)
(cut from 35 mins to 11 mins)
Application coverage by industry

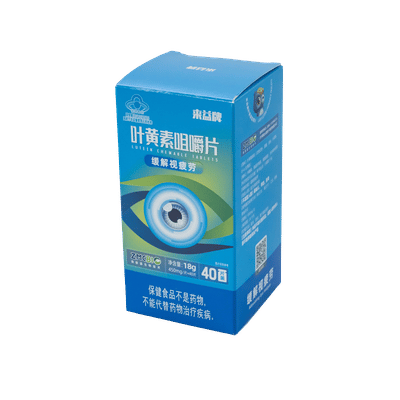

Pharmaceutical and healthcare
—secondary corrugated cartons for blister-pack outers, sample boxes, cold-chain shippers. RSC and HSC styles are most common. The main concerns are consistently accurate crease quality and chip-free adhesive bond performance on long runs.

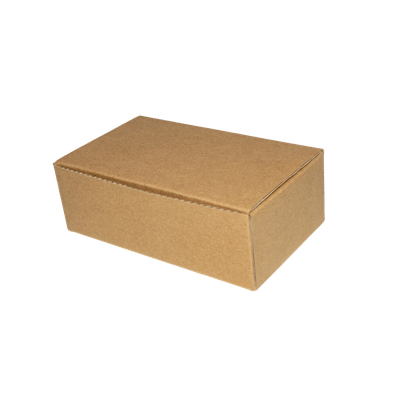

Express logistics and e- commerce
—high-volume RSC corrugated boxes, with short changeover time between SKU sizes. The Cenwan 1-click adjustment feature is a natural solution to the high-mix/ short-run profiling that retail distribution-set logistics imposes on the driver.

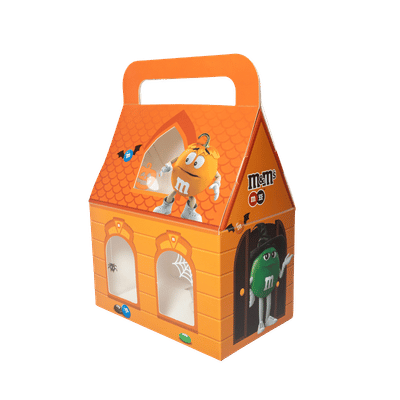

Food and beverage
—corrugated trays and shippers, retail-ready boxes. About 50% of production operates with a mixed-flute pasting machine, allowing flexo printing upstream.
Cosmetics & personal care
—precision closed-box corrugated cartons, with tighter registration windows. Vacuum transfer is responsible for the difference between an acceptable carton and one that the customer rejects.
Electronics and general consumer goods
—4-corner and 6-corner stereo boxes, typically with insert die-cuts. Cenwan box folding and gluing machines produce 6-corner cases at industrial speeds, matching high-speed production standards recently established by a folder gluer that recorded 9,000 sheets/hour in a folding carton plant.
Certifications, Standards & Compliance
Every Cenwan corrugated folder gluer machine aligns with the international packaging-industry standards that procurement teams audit during supplier qualification. Three domains form the compliance framework: box-style classification, machine safety, and quality-management systems.
FEFCO Code
12th edition box-style support
CE Marking
EU machine directive ready
ISO 9001
Quality management system
AICC Compatible
North American converter alignment
Box style support is governed by the FEFCO Code, the worldwide design system for corrugated packaging, initially articulated in the late 1960s and maintained by the International Corrugated Case Association (ICCA). The 12th edition adapts to retail and ECom design trends; Cenwan models cover the most-popular 02xx, 04xx and 07xx FEFCO coding series. CE marking verifies machines shipped into the European Economic Area; ISO 9001 verifies the quality system in the Wenzhou plant.

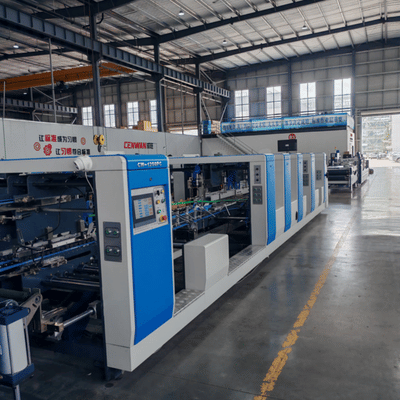

Manufacturing Facility & Global Reach
Procurement Guide — Pricing, Lead Time & Spare Parts
Most OEM web pages for folder gluer machinery keep pricing information fully hidden. Without a fair ballpark estimate, procurement has trouble budgeting and operations have trouble internalizing payback expectations: here is the structure of the cost factors and what shapes a typical Cenwan corrugated folder gluer machine quotation - with industry-anchored ranges, not a single posted price.
Pricing factors framework
| Cost Driver | Lower-cost configuration | Higher-cost configuration |
|---|---|---|
| Automation level | Semi-automatic with motorized carriers | Full automatic with one-click adjustment + memory recall |
| Print stations | 0 (pasting only) or 2 colors | 3–4 colors with vacuum transfer + doctor blade chambers |
| Box style range | RSC straight-line | RSC + HSC + 4/6-corner + crash-lock |
| Output peripherals | Counter ejector only | Counter ejector + bundle stacker + packing machine inline |
| Sheet caliper window | 1–7 mm | 1–10 mm with low-crush feeder |
| Spare-part & service plan | Standard parts kit | 24/7 remote diagnostic + on-site engineer dispatch |
Industry benchmark pricing estimates for 2026 send mid-range high-speed FFGs in the $400,000-$800,000 USD range, and ultra-high-speed line in the $800,000 to $1.8 mil USD; entry level FFGs run $200,000-$400,000 USD. Cenwan corrugated folder gluer machines sit in the middle to upper middle price range - capable of matching European OEMs on performance, delivering faster lead time, and investment-cash-flow negative for under 1 year for typical mid-volume converter throughput.
Use the "Building a quote" dropdown below for a configuration that fits your sheet size and integration scope - pricepoints fluctuate with automation levels, number of print colors, and output peripherals.
Lead time & MOQ
Regular Cenwan mid-high series ships in 60-90 days after order approval. European-class FFGs sourced from Bobst or BW typically need 180+ days before commissioning. Minimum order quantity (MOQ) is 1 machine; integrated lines are quoted as engineered systems.
Spare parts & after-sales support
Reliable support is consistently named the #1 hidden cost driver in folder gluer machine purchasing. Backing this up, Cenwan operates a continuous after-sales spare parts pipeline with fast technical response, remote diagnostic capability, and parts availability across more than 40 countries. Common wear items — folding rails, urethane belts, doctor blade chambers, and pull collars — are stocked for next-business-day dispatch in major markets.
ESTIMATOR
Corrugated FFG ROI Estimator
Enter your current corrugated box plant numbers and see the projected payback period for upgrading to a Cenwan mid-range flexo folder gluer machine. Estimates reflect industry baseline ratios; your actual results vary by labor rate, throughput, and existing waste rate.
Your Plant Inputs
boxes per day, two-shift operation
USD per hour (wages + benefits + overhead)
USD per year
Enter your plant numbers on the left and click Calculate Payback to generate your detailed ROI report.
Calculation method: labor saving = (current operators − 1.5) × shifts × labor rate × 8 h × 240 days. Waste saving = annual material × (current rate − 3%). Energy saving fixed at $3,200/year and maintenance saving at $7,000/year per industry baseline. Payback = installed price / total annual savings. Industry ratios from third-party 2026 ROI analysis; not a Cenwan-specific guarantee. Request a custom Cenwan quotation for accurate plant-specific numbers.
Why Cenwan — 10+ Years, 40+ Countries, Continuous Engineering Focus
Headquartered in Wenzhou, China, Cenwan Machinery sits inside a regional hub that has anchored corrugated converting equipment manufacturing for two decades. Our lineup is intentionally narrow: folder gluer machines for cardboard and corrugated cartons, plus auxiliary packing and integrated line solutions. That narrow focus is what produces the engineering depth — Cenwan engineers iterate on the same vacuum transfer geometry, urethane belt formulations, and crease-detection sensors year after year, rather than spreading attention across a broad packaging-equipment catalog.
Serving 40+ countries is not a marketing line — it is the answer to the brand-trust question that mid-volume converters in North America and Europe ask first: "Can I source a non-European mid-range FFG without losing service reliability?" Our 24/7 remote diagnostic and pre-stocked spare parts model is what makes that answer hold up in production.
Knowledge Base
Frequently Asked Questions
Find answers regarding corrugated folder gluer capabilities, cost benchmarks, lead times, and structural comparisons to ensure you select the optimal FFG machine for your box plant.
A flexo folder gluer (FFG) is an all-in-one combination machine which turns flat corrugated cardboard sheets into ready-to-use, printed and glued cartons in a single pass. The product receives a sheet feed, optical flexo print station (distributing for the typical 1-4 print colors), slotting stations, optional die-cutting stations, scoring stations, adhesive station (ford along the manufacturer's joint), and a finished carton stacker through a counter ejector. The entire cycle takes 150-350 sheets/min in a mid-range to high-end model.
Folding gluer machines designed for corrugated produce inline RSC/HSC box production and excel in print and fold output, typically 150-350 sheets/min; specialty corrugated folder-gluer presses manage complex styles such as 4 & 6-Corner、Crash-Lock-Bottom or POP displays with slower speed but a higher level of folding intricacy; folding carton folder-gluers handle paperboard (12pt + instead of fluted) and produce a throughput of 9,000+ sheets/hr, but with no fluting. Cenwan sells all three in different product lines - you are reading the corrugated FFG and specialty FG selection.
Here is where industry data for 2026 places this equipment (all semi-automatic folder gluer machines): $10,000-Lufes entry-level FFGs 400K USD; $200,000-$400,000, mid-range FFGs 7m USD; $400,000-$800,000, high-end ultra-speed lines 18m USD; $800,000-$1.8m USD Ultra-Speed lines. Cenwan corrugated folder gluer machines working at the mid-range and mid-high tier; specific quotes will depend upon automation level, print colors, sheet caliper window, after-sales scope of service.
Yes- Cenwan mid-high tier corrugated folder gluer machines run single-flute B/C/E and double-wall combinations in 1-10 mm sheet calipers. Standard low-crush feeder section maintains edge quality on thick stock, and adjustable forming wheels can be tailored to flute profile and grammage. For extreme double-wall + heavy-duty industrial cartons, the Box Folding and Gluing Machine and Auto Integrated Line are excellent starting points.
Standard Cenwan mid-high range production will ship within 60-90 days after order agreement, and warehousing spare belts, folding rails, forming wheels, sensor chambers as well as urethane belts, doctor blade chambers also stocks for next-business-day shipping in 40+ countries Cenwan regularly operates in. Remote diagnostic support is ongoing (24/7), and senior technicians will be dispatched on-site for installation, commissioning or complex maintenance.
Corrugated boxes use a fluted middle layer (the corrugated medium) sandwiched between two liner sheets - single-wall, double-wall, or triple-wall. The flute geometry (A, B, C, E, F) determines stacking strength and printability. Ordinary folding cartons are flat paperboard (typically 12pt or higher), without flutes. They look similar but the machine that runs them is different: corrugated folder gluer machines are wider, slower per stroke, and engineered for flute integrity; folding carton folder-gluers are faster but cannot handle corrugated material. Cenwan offers both ranges in separate lineups.
It depends on the converter's volume and changeover profile. A used flexo folder gluer can save 40-60% on initial capital, but typical hidden costs include: missing or obsolete spare parts, expired CE/ISO documentation, refurbishment uncertainty, and operator-training gaps when documentation is incomplete. For a mid-volume converter chasing 12-18 month payback on a new mid-range Cenwan flexo folder gluer machine, the math typically still favors a new machine because labor savings (+$470,000/year) and waste reduction (+$75,000/year) compound from day one.
